American Audio

VMS4 Legacy

DJ Controller · Released 2010

Four-channel MIDI DJ controller and standalone analog mixer with dual jog wheels, integrated audio and external line/phono inputs.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
Weight
6 kg

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
Channel gain / trim knobs
Yes
EQ bands per channel
3
Hardware crossfader curve
Yes

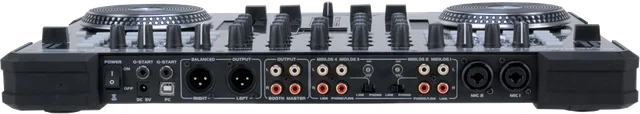

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × RCA (unbalanced)
Headphones
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No

Jog wheels & transport

Jog display
No
Jog display technology
No display

Performance & FX

Dedicated stems controls
No

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None

Size & power

Width
482 mm
Depth
325 mm
Height
40 mm
Weight
6 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
16
Sample rate (kHz)
44.1
Audio note
USB audio is 16-bit / 44.1 kHz; analog audio path specified at 24-bit / 48 kHz. S/N >85 dB; THD <0.1%.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
