DJ Gear Database
← Back to results

Native Instruments

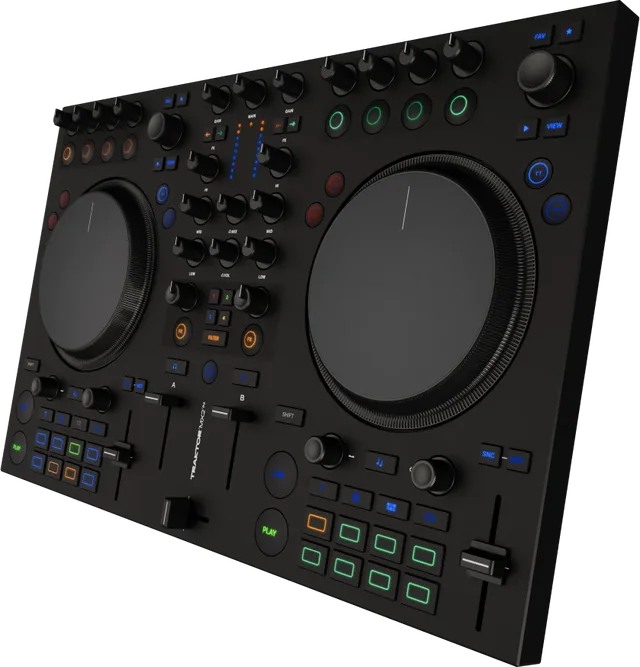

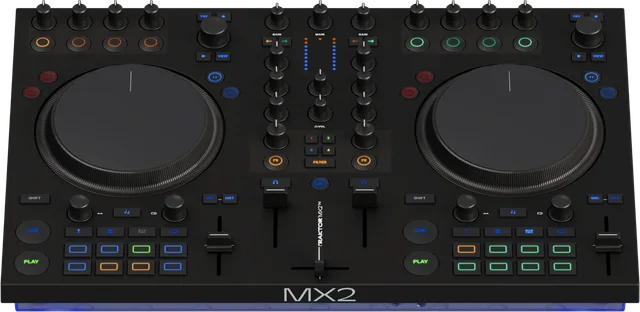

Traktor MX2

DJ Controller · Released 2025

Two-channel Traktor Pro 4 controller with touch-sensitive high-resolution jog wheels, eight RGB pads per deck, Mixer FX and Deck FX controls and 24-bit/96 kHz audio.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Unbalanced
Standalone playback
No
Standalone mixer
No
Traktor VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Traktor

Official support
Yes
Hardware unlock
-
Included license
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
No

Connections

Master output
  • 2 × RCA (unbalanced)
  • 1 × 3.5 mm stereo
Master output class
Unbalanced
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × 6.35 mm TRS
Line / phono inputs
None
Aux input
None
Computer USB
  • 1 × USB-C
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
≈ 140 mm
Jog display
No
Jog display technology
No display
Feel / tension adjustment
No

Performance & FX

Pads per deck
8
Velocity-sensitive pads
No
Pad backlighting
RGB
Hardware FX
No
FX controls
  • Knobs / buttons

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
511.4 mm
Depth
323.1 mm
Height
61.9 mm
Weight
2.73 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1 / 48 / 88.2 / 96
Audio note
RCA main: 109 dB A-weighted dynamic range; 0.001% THD+N (NI specification).

Manual & support

User manual ↗ Support & downloads ↗
