Numark

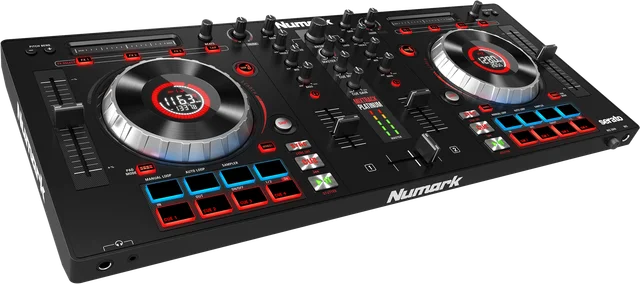

Mixtrack Platinum Legacy

DJ Controller · Released 2016

Four-deck-layer Serato controller with dual 5-inch capacitive jog wheels, 1.75-inch color jog displays, eight pads per deck and 24-bit audio.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer / mobile
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Unbalanced
Standalone playback
No
Standalone mixer
No
Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Lite)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer / mobile
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
No

Connections

Master output
  • 2 × RCA (unbalanced)
Master output class
Unbalanced
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × 6.35 mm TS
Line / phono inputs
None
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
≈ 127 mm
Jog display
Yes 1.75-inch color high-resolution LCD showing BPM, platter position, time remaining, pitch adjustment and key lock.
Jog display technology
LCD
Feel / tension adjustment
No
Tempo slider travel
100 mm

Performance & FX

Pads per deck
8
Velocity-sensitive pads
No
Dedicated stems controls
No
Hardware FX
No
FX controls
  • Knobs / buttons

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
549 mm
Depth
241 mm
Height
51 mm
Weight
2.2 kg
Power source
USB bus-powered

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
