Allen & Heath

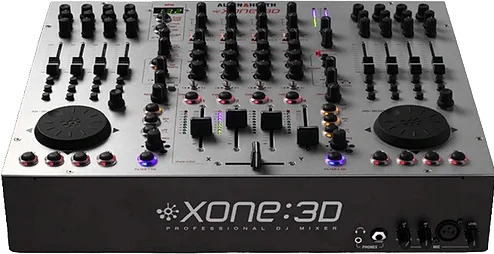

Xone:3D Legacy

DJ Controller · Released 2005

Four-channel analog DJ mixer, MIDI control surface and USB audio interface with two deck-control sections and dual jog wheels.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Master output class
Balanced
Standalone playback
No
Standalone mixer
Yes
Weight
5 kg

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
4
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
Channel gain / trim knobs
Yes
EQ bands per channel
4
User-replaceable crossfader
Yes
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
Master output class
Balanced
Booth output
  • 2 × RCA (unbalanced)
Headphones
  • 1 × 6.35 mm stereo
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog display
No
Jog display technology
No display

Performance & FX

Dedicated stems controls
No
Hardware FX
No

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
432 mm
Depth
358 mm
Height
88 mm
Weight
5 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Frequency response
20 Hz–30 kHz (+0/−2 dB)
Audio note
USB soundcard: 24-bit converters, 44.1/48 kHz. Main mix distortion at 1 kHz <0.02%; main mix noise 22 Hz–22 kHz unweighted <−80 dBu (84 dB S/N).

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
