DN-MC3000

Legacy

DJ Controller · Released 2011

Add to comparison

Compact two-channel controller with two physical deck sections, four-deck software control, balanced and unbalanced master outputs, dual line inputs and 16-bit/48 kHz USB audio.

Overview

Mixer channels: 2
Built-in audio interface: Yes
Operation mode: Computer
Controller layout: Club / standard
Jog / platter type: Capacitive-touch
Master output class: Balanced + unbalanced
Standalone playback: No
Standalone mixer: No

Traktor

VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Traktor

Official support: Yes
Hardware unlock: -

Originally supplied with Traktor LE 2.

VirtualDJ

Official support: Yes
Hardware unlock: -
Included license: Yes (LE V7 (original packages))

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode: Computer
Standalone playback: No
Built-in audio interface: Yes

Decks & mixer

Mixer channels: 2
Deck control: 4
Physical deck sections: 2
Controller layout: Club / standard
Standalone mixer: No
DVS: No
Channel gain / trim knobs: Yes
EQ bands per channel: 3
Per-channel filter: No
User-replaceable crossfader: No
Hardware crossfader curve: No

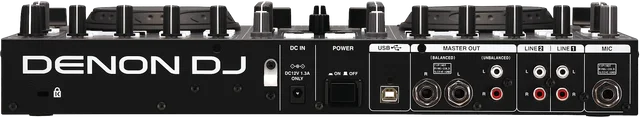

Connections

Master output: 2 × 6.35 mm TRS (balanced)
2 × RCA (unbalanced)
Master output class: Balanced + unbalanced
Booth output: None
Headphones: 1 × 6.35 mm stereo
Microphone inputs: 1 × 6.35 mm TRS
Line / phono inputs: 2 × stereo RCA (line)
Aux input: None
Computer USB: 1 × USB-B
Dual-computer support: No
DMX output: No
Built-in speakers: No
Connection exceptions: LINE TO MASTER routes an external line source directly to the master output without a computer.

Jog wheels & transport

Jog / platter type: Capacitive-touch
Jog / platter diameter: 105 mm
Jog display: No
Jog display technology: No display
Feel / tension adjustment: No
Tempo fader length: 60 mm

Performance & FX

Dedicated stems controls: No
Hardware FX: No
FX controls: Knobs / buttons

Display & media

Main display: No display
Touchscreen technology: No touchscreen
Media / storage: None
Network / wireless: None

Size & power

Dimensions note: Chassis depth and height exclude projecting controls and connectors. Allow additional clearance.
Width: 400 mm
Depth: 255 mm
Height: 50 mm
Weight: 3 kg
Power source: AC adapter

Audio specifications

Audio resolution (bit): 16
Sample rate (kHz): 48
Frequency response: 20 Hz–20 kHz
Master out THD (USB, %): 0.05

Manual & support

User manual ↗ Support & downloads ↗
