Hercules

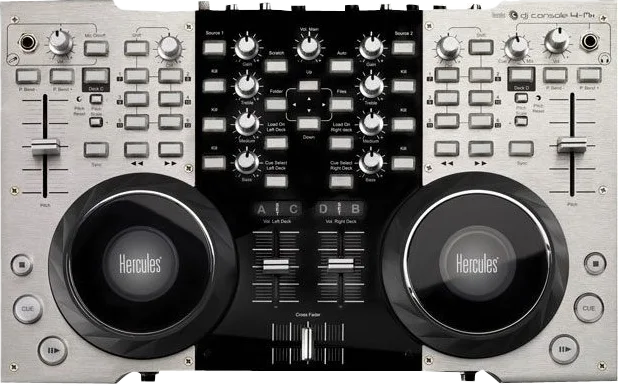

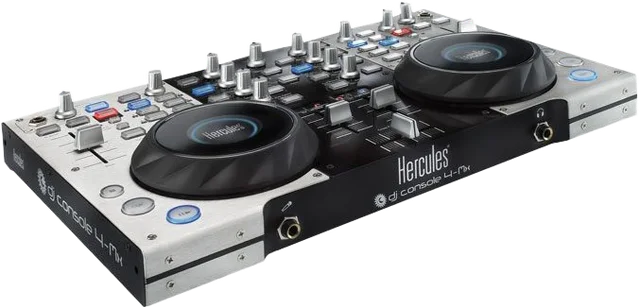

DJ Console 4-Mx Legacy

DJ Controller · Released 2010

Four-deck-capable controller with two physical deck sections, large touch-sensitive jog wheels, integrated audio and switchable external line/phono inputs.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Standalone playback
No
Standalone mixer
No
DVS
No
VirtualDJ DJUCED

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

VirtualDJ

Official support
Yes
Hardware unlock
-
Included license
Yes (LE V7 (original packages))

DJUCED

Official support
Yes
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Hardware crossfader curve
No

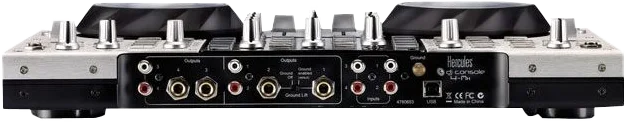

Connections

Master output
  • 2 × RCA (unbalanced)
  • 2 × 6.35 mm mono (class unspecified)
Booth output
None
Headphones

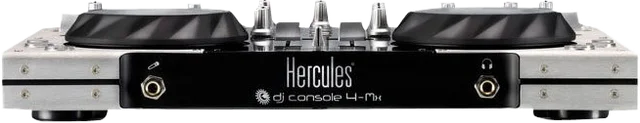

  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Hercules doesn’t specify whether the two mono 6.35 mm speaker outputs are balanced.

Jog wheels & transport

Jog / platter diameter
≈ 120 mm
Jog display
No
Jog display technology
No display
Feel / tension adjustment
No
Tempo slider travel
60 mm

Performance & FX

Dedicated stems controls
No
Hardware FX
No
FX controls
  • Knobs / buttons

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
≈ 400 mm
Depth
≈ 250 mm
Power source
USB bus-powered

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Audio note
Core Audio supports up to 24-bit / 48 kHz; default VirtualDJ mode may operate at 16-bit / 44.1 kHz.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
