Mixtrack Platinum FX

DJ Controller · Released 2020

Add to comparison

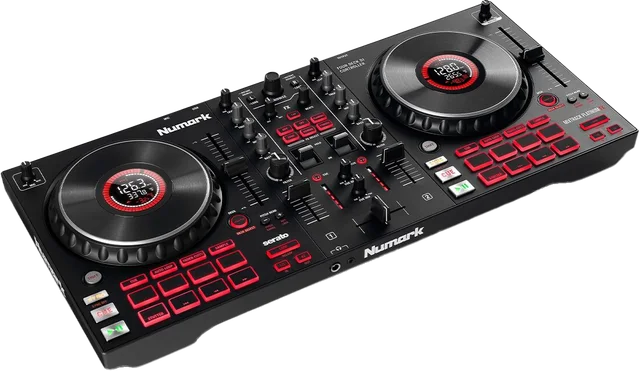

Four-deck-layer Serato controller with 6-inch capacitive jog wheels, color jog displays, FX paddles and a 24-bit interface.

Overview

Mixer channels: 2
Built-in audio interface: Yes
Operation mode: Computer / mobile
Controller layout: Club / standard
Jog / platter type: Capacitive-touch
Master output class: Unbalanced
Standalone playback: No
Standalone mixer: No

Serato DJ

VirtualDJ

djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support: Yes
Hardware unlock: Yes (Lite)

Ships with Serato DJ Lite; upgrade-ready for Serato DJ Pro.

VirtualDJ

Official support: Yes (paid license required)
Hardware unlock: -

djay

Official support: Yes
Hardware unlock: -

About software support & licenses →

Operation mode: Computer / mobile
Standalone playback: No
Built-in audio interface: Yes

Decks & mixer

Mixer channels: 2
Deck control: 4
Physical deck sections: 2
Controller layout: Club / standard
Standalone mixer: No
DVS: No
Channel gain / trim knobs: Yes
EQ bands per channel: 3
Per-channel filter: Yes
User-replaceable crossfader: No
Hardware crossfader curve: No

Connections

Master output: 2 × RCA (unbalanced)
Master output class: Unbalanced
Booth output: None
Headphones: 1 × 6.35 mm stereo
1 × 3.5 mm stereo
Microphone inputs: 1 × 6.35 mm TS
Line / phono inputs: None
Aux input: None
Computer USB: 1 × USB-B
Dual-computer support: No
DMX output: No
Built-in speakers: No

Jog wheels & transport

Jog / platter type: Capacitive-touch
Jog / platter diameter: 152.4 mm
Jog display: Yes Displays BPM, platter position, time remaining, pitch adjustment, and key.
Jog display technology: LCD
Feel / tension adjustment: No
Tempo fader length: 100 mm

Performance & FX

Pads per deck: 8
Velocity-sensitive pads: No
Pad backlighting: Single-color
Dedicated stems controls: No
Hardware FX: No
FX controls: Knobs / buttons
Paddles

Display & media

Main display: No display
Touchscreen technology: No touchscreen
Media / storage: None
Network / wireless: None

Size & power

Width: ≈ 536 mm
Depth: ≈ 246 mm
Height: ≈ 51 mm
Weight: 2.4 kg
Power source: USB bus-powered

Audio specifications

Audio resolution (bit): 24
Sample rate (kHz): 44.1

Manual & support

User manual ↗ Support & downloads ↗
