Pioneer DJ

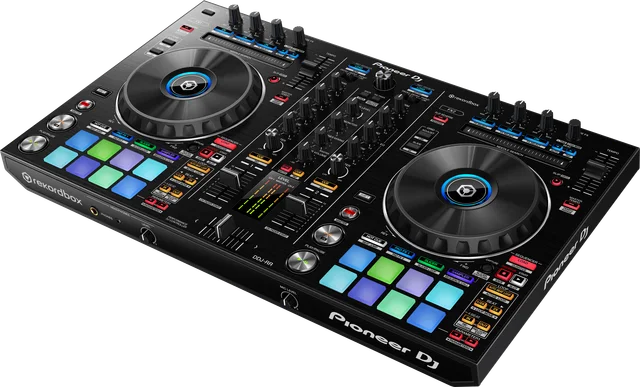

DDJ-RR Legacy

DJ Controller · Released 2016

Portable two-channel rekordbox controller with four-deck switching, RGB pads, external inputs and standalone mixer operation.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
DVS
Yes rekordbox dvs supported; originally required the rekordbox dvs Plus Pack.
rekordbox VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
No

rekordbox lists this model as no longer supported (not guaranteed to work in rekordbox 7). It was a hardware unlock device in rekordbox 6.

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes rekordbox dvs supported; originally required the rekordbox dvs Plus Pack.
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × 6.35 mm TS
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog display
Yes Illuminated position/status display; no LCD panel.
Jog display technology
LED
Feel / tension adjustment
No

Performance & FX

Pads per deck
8
Velocity-sensitive pads
Yes
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
No
FX controls
  • Knobs / buttons
Extra features
  • Sequence Load
  • Slip Mode
  • Release FX

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
553 mm
Depth
334.5 mm
Height
65.1 mm
Weight
3.7 kg
Power source
USB bus / AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
105
Master out THD (USB, %)
0.003
Audio note
USB signal path.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
