Pioneer DJ

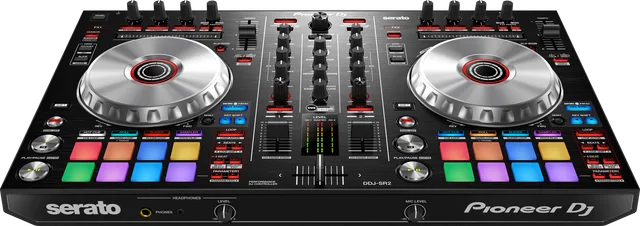

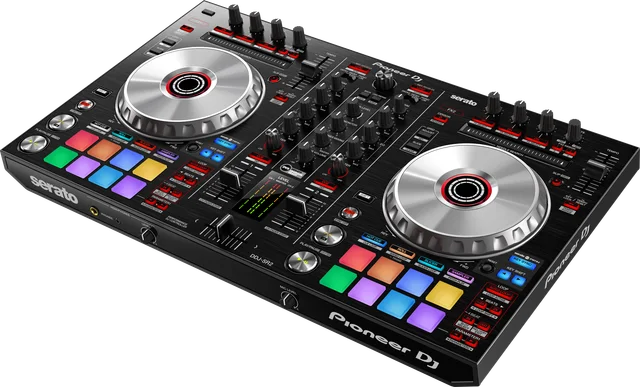

DDJ-SR2 Legacy

DJ Controller · Released 2017

Portable two-channel Serato controller with four-deck control, RGB pads, line/phono inputs and balanced professional outputs.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
Serato DJ VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes Paid Serato DVS Expansion Pack required.
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × 6.35 mm TS
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog display
No
Jog display technology
No display
Feel / tension adjustment
No
Tempo slider travel
60 mm

Performance & FX

Pads per deck
8
Pad backlighting
RGB
Dedicated stems controls
No
FX controls
  • Knobs / buttons
Extra features
  • Key Shift
  • Key Sync
  • Pitch Play
  • Slip Mode

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
553 mm
Depth
334.5 mm
Height
65.1 mm
Weight
3.7 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
105
Master out THD (USB, %)
0.003
Audio note
USB path.

Notable included items

Notable included items
  • AC adapter
  • Power cord
  • USB cable
  • Serato expansion vouchers

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
