Pioneer DJ

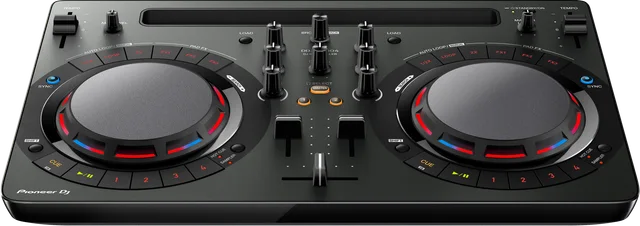

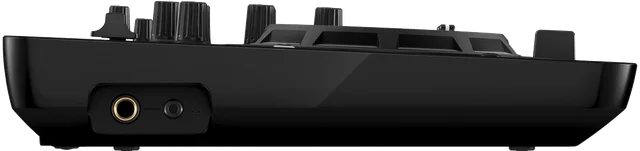

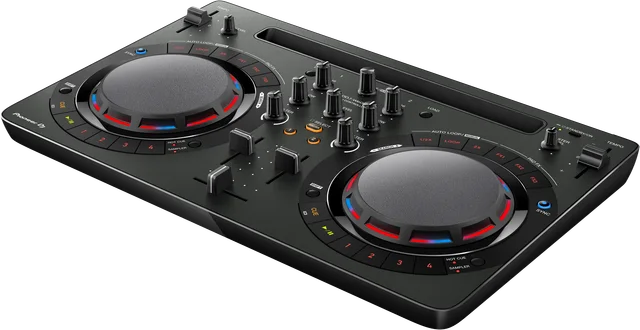

DDJ-WeGO4 Legacy

DJ Controller · Released 2016

Compact two-deck DJ controller with touch-sensitive jog wheels, two-channel mixer controls and an integrated audio interface.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer / mobile
Controller layout
Compact / portable
Master output class
Unbalanced
Standalone playback
No
Standalone mixer
No
DVS
No
rekordbox VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer / mobile
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Compact / portable
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
User-replaceable crossfader
No
Hardware crossfader curve
No

Connections

Master output
  • 2 × RCA (unbalanced)
Master output class
Unbalanced
Booth output
None
Line / phono inputs
None
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog display
No
Jog display technology
No display

Performance & FX

Dedicated stems controls
No

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None

Size & power

Width
380 mm
Depth
240 mm
Height
59 mm
Weight
1.8 kg
Power source
USB bus-powered

Audio specifications

Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
103
Audio note
USB path: 20 Hz–20 kHz; 103 dB S/N; THD max 0.006% (Pioneer specification).

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
