Hercules

DJ Console RMX Legacy

DJ Controller · Released 2008

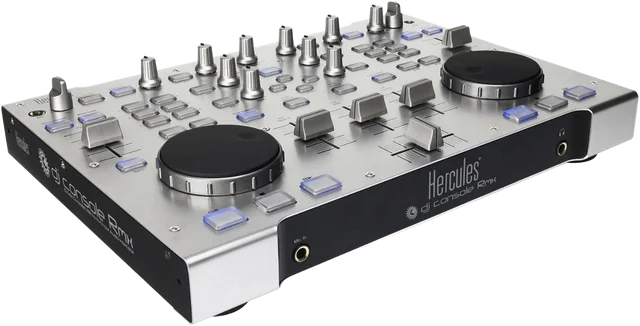

Two-deck MIDI controller with a two-channel mixer layout, integrated audio interface, microphone input and external audio inputs in a metal enclosure.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Standalone playback
No
Standalone mixer
No
DVS
No
VirtualDJ DJUCED

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

VirtualDJ

Official support
Yes
Hardware unlock
-
Included license
Yes (LE V7 (original packages))

DJUCED

Official support
Yes
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Hardware crossfader curve
No

Connections

Master output
  • 2 × RCA (unbalanced)
  • 2 × 6.35 mm mono (class unspecified)
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions

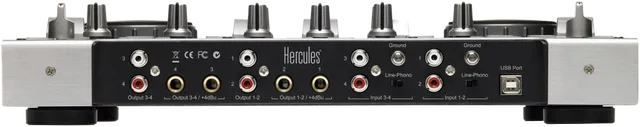

Four mono ¼" jack outputs (+4 dBu): 1–2 for the main mix, 3–4 for monitoring or an external mixer. Hercules doesn’t specify whether they’re balanced.

Jog wheels & transport

Jog display
No
Jog display technology
No display
Feel / tension adjustment
Yes

Performance & FX

Dedicated stems controls
No
Hardware FX
No
FX controls
  • Knobs / buttons

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Power source
USB bus-powered

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Audio note
Maximum supported hardware audio mode: 24-bit / 48 kHz; four-channel modes may use 16-bit at 44.1/48 kHz.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
