Pioneer DJ

DDJ-ERGO / DDJ-ERGO-V Legacy

DJ Controller · Released 2011

Compact four-deck software controller with illuminated jog feedback, built-in audio, auxiliary input and USB bus power.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Jog / platter type
Mechanical
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
No
Serato DJ Traktor VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Lite)

Traktor

Official support
Yes
Hardware unlock
-

VirtualDJ

Official support
Yes
Hardware unlock
-
Included license
Yes (LE V7 (original packages))

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
No

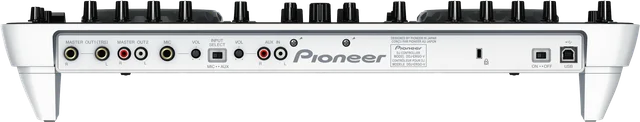

Connections

Master output
  • 2 × 6.35 mm TRS (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × 6.35 mm (contacts unspecified)
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Mechanical
Jog / platter diameter
115 mm
Jog display
Yes Jog illumination provides tempo/effect feedback; no LCD.
Jog display technology
LED
Feel / tension adjustment
No

Performance & FX

Pads per deck
4
Dedicated stems controls
No
Hardware FX
No
FX controls
  • Knobs / buttons
Extra features
  • Pulse Control illumination

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
554.8 mm
Depth
279.8 mm
Height
103.2 mm
Weight
2.9 kg
Power source
USB bus-powered

Audio specifications

Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
101
Master out THD (USB, %)
0.006
Audio note
Master outputs. Pioneer doesn’t specify the converter bit depth or sample rate.
