Denon DJ

PRIME 2 Legacy

DJ Controller · Released 2020

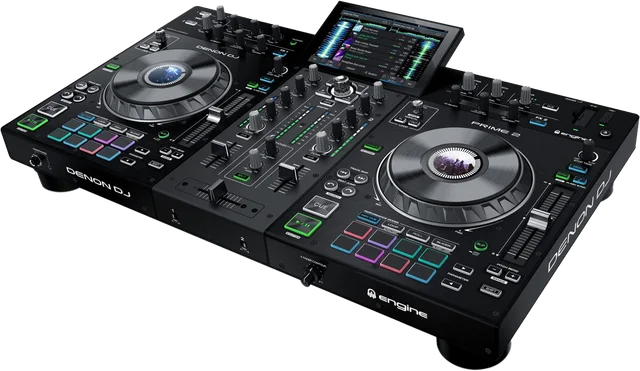

Two-deck Engine DJ standalone console with 7-inch touchscreen, 6-inch jog displays, three USB media ports, SD slot and internal SATA bay.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
No
VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
Engine DJ

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
Yes
Hardware crossfader curve
No

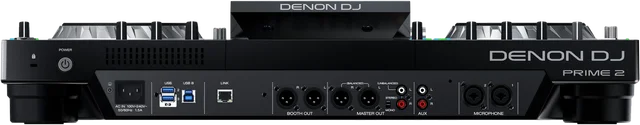

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × XLR (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Three USB-A media ports, SD slot, internal 2.5-inch SATA bay, and Ethernet.

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
≈ 152 mm
Jog display
Yes
Jog display technology
LCD
Feel / tension adjustment
No

Performance & FX

Pads per deck
8
Hardware FX
Yes
FX controls
  • Knobs / buttons
  • Screen controls

Display & media

Main display
Color
Main display size
178 mm
Touchscreen
Yes
Media / storage
  • USB-A storage
  • SD card
  • Internal storage
Network / wireless
  • Ethernet
  • Wi-Fi

Size & power

Width
644.8 mm
Depth
410.1 mm
Height
120.2 mm
Weight
7.2 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
