Pioneer DJ

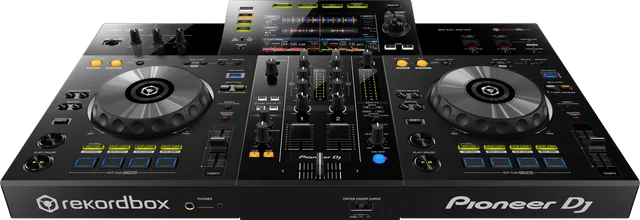

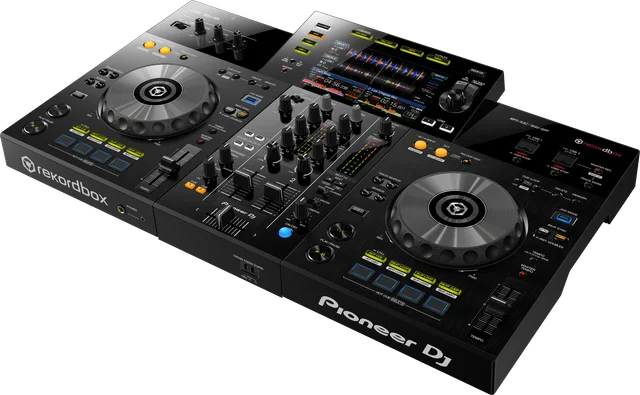

XDJ-RR Legacy

DJ Controller · Released 2018

Portable two-channel standalone rekordbox system with 7-inch color display, dual USB media ports and onboard mixer effects.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
No
rekordbox VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
rekordbox

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
User-replaceable crossfader
No
Hardware crossfader curve
No

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Two USB-A host ports support media/storage.

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
132 mm
Jog display
No
Jog display technology
No display

Performance & FX

Pads per deck
4
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
Extra features
  • USB recording

Display & media

Main display
Color
Main display size
≈ 178 mm
Touchscreen
No
Touchscreen technology
No touchscreen
Media / storage
  • USB-A storage
Network / wireless
None

Size & power

Width
625 mm
Depth
388.5 mm
Height
74.2 mm
Weight
5.2 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
112
Master out THD (USB, %)
0.003
Audio note
USB signal path.
