Pioneer DJ

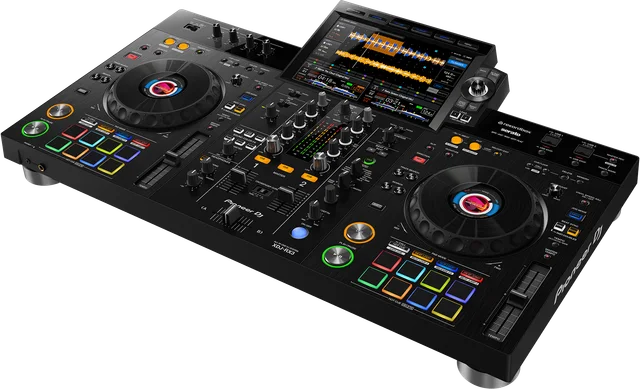

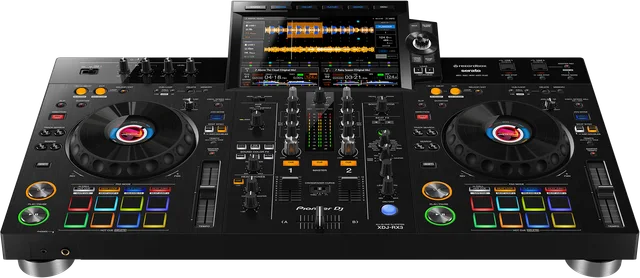

XDJ-RX3

DJ Controller · Released 2021

Two-deck standalone rekordbox system with 10.1-inch touchscreen, performance pads, dual USB media ports and onboard mixer effects.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
Yes
rekordbox Serato DJ VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
rekordbox

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
  • 1 × stereo RCA
  • 1 × 3.5 mm stereo
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Two USB-A storage/media ports; USB-B computer connection.

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
154 mm
Jog display
Yes Color On Jog Display shows playhead position and artwork.
Jog display technology
LCD
Feel / tension adjustment
Yes

Performance & FX

Pads per deck
8
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
Extra features
  • USB recording
  • standalone playback

Display & media

Main display
Color
Main display size
≈ 257 mm
Touchscreen
Yes
Media / storage
  • USB-A storage
Network / wireless
None

Size & power

Width
728.1 mm
Depth
469.5 mm
Height
118.4 mm
Weight
9.3 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
110
Master out THD (USB, %)
0.003
Audio note
USB signal path.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
