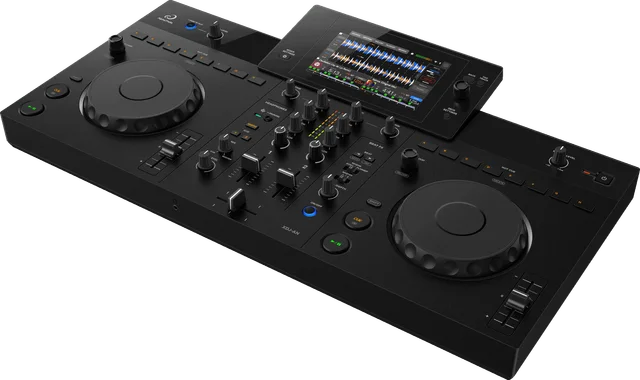

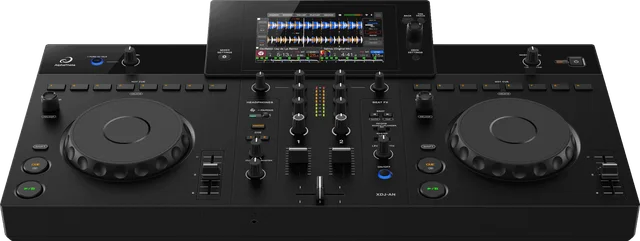

XDJ-AN

DJ Controller · Released 2026

Add to comparison

Two-channel all-in-one with 7-inch touchscreen, USB-C storage, streaming and cloud playback, Wi-Fi, Bluetooth audio and SonicLink.

Overview

Mixer channels: 2
Built-in audio interface: Yes
Operation mode: Standalone / computer
Controller layout: Club / standard
Jog / platter type: Capacitive-touch
Master output class: Balanced + unbalanced
Standalone playback: Yes
Standalone mixer: No

rekordbox

Serato DJ

djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support: Yes
Hardware unlock: Yes

Core plan hardware unlock (previously included a rekordbox dj license key before rekordbox 6).

Serato DJ

Official support: Yes
Hardware unlock: Yes (Lite)

Serato DJ Pro requires a subscription.

djay

Official support: Yes (paid license required)
Hardware unlock: -

About software support & licenses →

Operation mode: Standalone / computer
Standalone playback: Yes
Built-in audio interface: Yes
Onboard platform: rekordbox

Decks & mixer

Mixer channels: 2
Deck control: 2
Physical deck sections: 2
Controller layout: Club / standard
Standalone mixer: No
DVS: No
Channel gain / trim knobs: Yes
EQ bands per channel: 3
Per-channel filter: Yes Through the Sound Color FX knob.
User-replaceable crossfader: No
Hardware crossfader curve: No

Connections

Master output: 2 × XLR (balanced)
2 × RCA (unbalanced)
Master output class: Balanced + unbalanced
Booth output: None
Headphones: 1 × 3.5 mm stereo
Microphone inputs: 1 × 6.35 mm TRS
Line / phono inputs: None
Aux input: None
Computer USB: 1 × USB-C
Dual-computer support: No
DMX output: No
Built-in speakers: No
Connection exceptions: Separate USB-C ports for storage, PC/Mac/mobile data, and power.

Jog wheels & transport

Jog / platter type: Capacitive-touch
Jog / platter diameter: 132 mm
Jog display: No
Jog display technology: No display
Feel / tension adjustment: No

Performance & FX

Pads per deck: 8
Velocity-sensitive pads: No
Pad backlighting: Single-color
Dedicated stems controls: No
Hardware FX: Yes
FX controls: Knobs / buttons
Screen controls
Extra features: CloudDirectPlay, StreamingDirectPlay.

Display & media

Main display: Color
Main display size: ≈ 178 mm
Touchscreen: Yes
Touchscreen technology: Capacitive
Media / storage: USB-C storage
Network / wireless: Wi-Fi
Bluetooth audio input
Bluetooth audio output

Size & power

Width: 638 mm
Depth: 359.2 mm
Height: 89.9 mm
Weight: 5.2 kg
Power source: AC adapter Dedicated USB-C power input; separate from the storage and PC/Mac/mobile USB-C ports.

Audio specifications

Audio resolution (bit): 24
Sample rate (kHz): 44.1
Frequency response: 20 Hz–20 kHz
Signal-to-noise ratio (dB): 112
Master out THD (USB, %): 0.003
Audio note: USB path.

Notable included items

Notable included items: AC adapter
Power cord

Manual & support

User manual ↗ Support & downloads ↗
