Korg

KAOSS DJ Legacy

DJ Controller · Released 2015

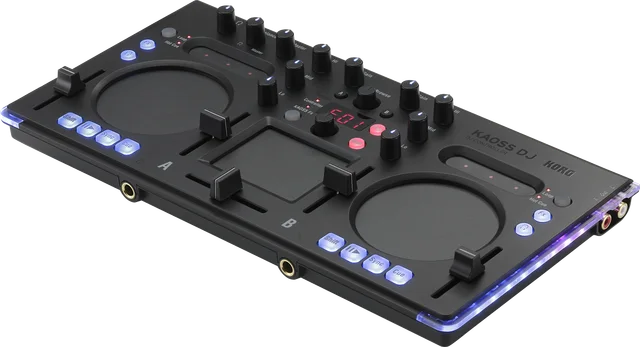

Compact two-channel DJ controller and standalone mixer with touch-sensitive platters, an integrated KAOSS effects touchpad and built-in audio.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Compact / portable
Master output class
Unbalanced
Standalone playback
No
Standalone mixer
Yes
DVS
No
Serato DJ VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Lite)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Compact / portable
Standalone mixer
Yes
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
User-replaceable crossfader
No
Hardware crossfader curve
No

Connections

Master output
  • 2 × RCA (unbalanced)
Master output class
Unbalanced
Booth output
None
Headphones
  • 1 × 6.35 mm stereo
Microphone inputs
  • 1 × 6.35 mm TS
Line / phono inputs
  • 2 × stereo RCA (line)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog display
No
Jog display technology
No display

Performance & FX

Dedicated stems controls
No
Hardware FX
Yes

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
307 mm
Depth
158 mm
Height
42 mm
Weight
0.73 kg
Power source
USB bus / AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Frequency response
20 Hz–20 kHz
Audio note
24-bit at 44.1/48 kHz; S/N >100 dB (USB).

Notable included items

Notable included items
  • USB cable

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
