Pioneer DJ

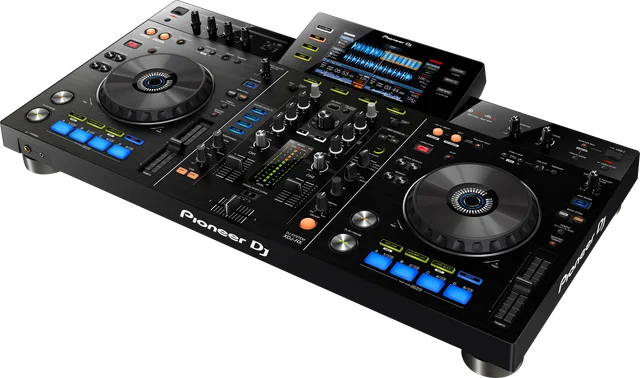

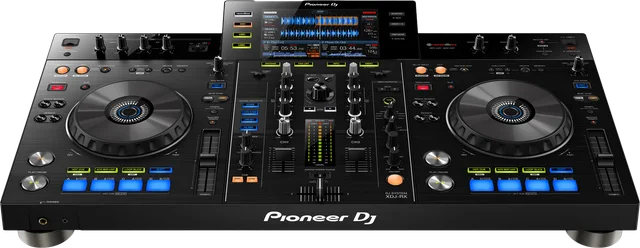

XDJ-RX Legacy

DJ Controller · Released 2015

Two-deck standalone rekordbox system with 7-inch color display, two-channel mixer, dual USB media ports and onboard effects.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
Yes
DVS
No
rekordbox VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
No

Not a rekordbox 7 hardware unlock device; rekordbox library and USB export remain supported.

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
rekordbox

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
  • 1 × 6.35 mm TRS
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Two USB-A storage/media ports; USB-B computer connection.

Jog wheels & transport

Jog display
No
Jog display technology
No display
Feel / tension adjustment
No

Performance & FX

Pads per deck
4
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
Extra features
  • USB recording
  • standalone playback

Display & media

Main display
Color
Main display size
≈ 178 mm
Touchscreen
No
Touchscreen technology
No touchscreen
Media / storage
  • USB-A storage
Network / wireless
  • Ethernet

Size & power

Width
728.2 mm
Depth
411.9 mm
Height
104.2 mm
Weight
8 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
110
Master out THD (USB, %)
0.003
Audio note
QSG spec: 44.1 kHz, A/D and D/A 24 bits, S/N USB 110 dB (rated output, A-weighted), THD USB 0.003 % (20 Hz–20 kHz BW). Pioneer launch material stated 48 kHz; manual value used.

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗

Similar DJ controllers

Matched on product series, mixer channels, standalone features, layout, jog type, size, era and launch price. A starting point for comparison, not a recommendation.
