Pioneer DJ

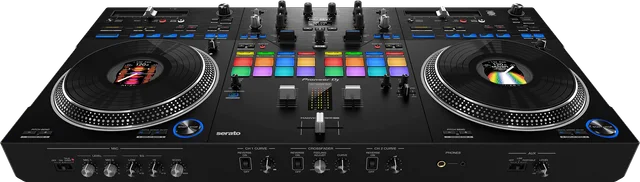

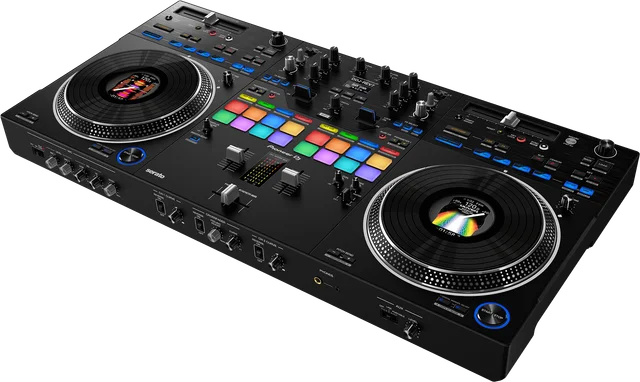

DDJ-REV7

DJ Controller · Released 2022

Two-channel battle controller with motorized 207 mm platters, 3.5-inch on-jog displays, Instant Scratch and standalone mixer inputs.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer / mobile
Controller layout
Battle / scratch
Jog / platter type
Motorized platter
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
rekordbox Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

About software support & licenses →

Operation mode
Computer / mobile
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Battle / scratch
Standalone mixer
Yes
DVS
Yes Serato DVS entitlement may be separate.
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
Yes
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
  • 1 × 6.35 mm TRS
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
  • 1 × stereo RCA
Computer USB
  • 2 × USB-B
Dual-computer support
Yes
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Motorized platter
Jog / platter diameter
207 mm
Jog display
Yes 3.5-inch on-jog displays.
Jog display technology
LCD
Feel / tension adjustment
Yes
Torque adjustment
Yes
Tempo slider travel
100 mm

Performance & FX

Pads per deck
4
Velocity-sensitive pads
Yes
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
  • Paddles
Extra features
  • Instant Scratch
  • Magvel Fader Pro

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
732 mm
Depth
382.2 mm
Height
82.4 mm
Weight
10.7 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
110
Master out THD (USB, %)
0.003
Audio note
USB path.

Notable included items

Notable included items
  • AC adapter
  • USB cable
  • Slip sheets

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
