Pioneer DJ

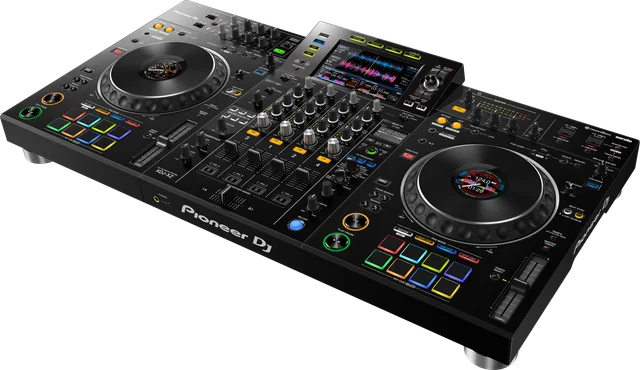

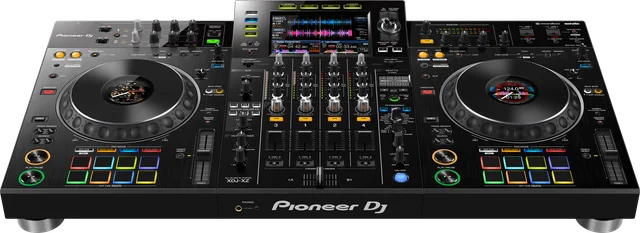

XDJ-XZ Legacy

DJ Controller · Released 2019

Professional four-channel all-in-one DJ system with two standalone USB decks, full-size jogs, external-player channels and Pro DJ Link.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Mechanical
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
Yes
rekordbox Serato DJ VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

Legacy controller: official support may be limited to older software versions and operating systems.

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
rekordbox

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes rekordbox Core plan or above, or paid Serato DVS Expansion Pack, required.
Channel gain / trim knobs
Yes
EQ bands per channel
3
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Standalone USB playback is on physical decks 1–2; channels/decks 3–4 require connected external players or computer software. Two USB-A media ports, one USB-B computer port, three LAN ports and one 6.35 mm TS send.

Jog wheels & transport

Jog / platter type
Mechanical
Jog / platter diameter
206 mm
Jog display
Yes Color On Jog Display.
Jog display technology
LCD
Feel / tension adjustment
Yes

Performance & FX

Pads per deck
8
Velocity-sensitive pads
No
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
Extra features
  • USB recording
  • Pro DJ Link
  • Send output

Display & media

Main display
Color
Main display size
≈ 178 mm
Touchscreen
Yes
Media / storage
  • USB-A storage
Network / wireless
  • Ethernet

Size & power

Width
878 mm
Depth
466.1 mm
Height
118.4 mm
Weight
13 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
111
Master out THD (USB, %)
0.003
Audio note
Current Pioneer comparison: 24-bit A/D and D/A, 44.1 kHz, 111 dB USB S/N. Original 2019 launch stated 114 dB S/N.

Notable included items

Notable included items
  • License key card

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
