AlphaTheta

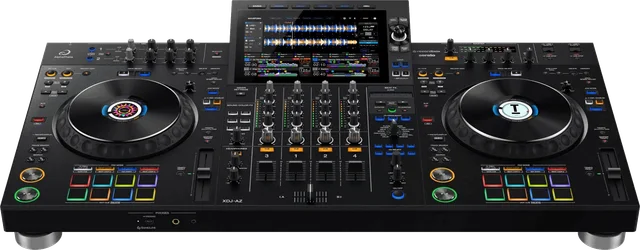

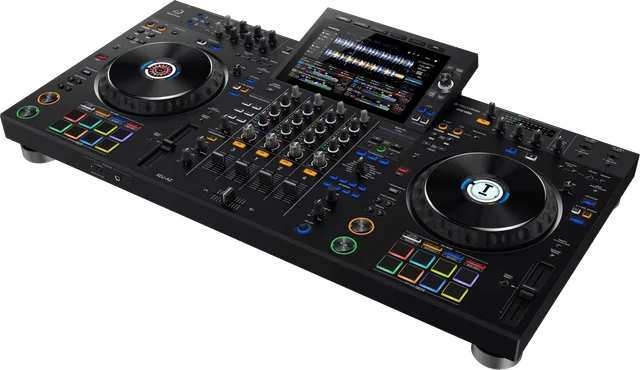

XDJ-AZ

DJ Controller · Released 2024

Flagship four-channel all-in-one with 10.1-inch touchscreen, 206 mm jogs, four-deck standalone playback, Wi-Fi, Bluetooth and SonicLink.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Mechanical
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
Yes
rekordbox Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
rekordbox

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes rekordbox Core plan or above, or paid Serato DVS Expansion Pack, required.
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 1 × USB-C
Dual-computer support
No
DMX output
No
Built-in speakers
No
Connection exceptions
Two USB-A storage ports and one 100BASE-TX PRO DJ LINK port.

Jog wheels & transport

Jog / platter type
Mechanical
Jog / platter diameter
206 mm
Jog display
Yes
Jog display technology
LCD
Feel / tension adjustment
Yes

Performance & FX

Pads per deck
8
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
  • Screen controls

Display & media

Main display
Color
Main display size
≈ 257 mm
Touchscreen
Yes
Touchscreen technology
Capacitive
Media / storage
  • USB-A storage
Network / wireless
  • Ethernet
  • Wi-Fi
  • Bluetooth audio input

Size & power

Width
895 mm
Depth
504.1 mm
Height
133.4 mm
Weight
13.5 kg
Power source
Internal AC supply

Audio specifications

Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
115
Master out THD (USB, %)
0.0018
Audio note
32-bit value is the MASTER D/A converter; other A/D and D/A converters are 24-bit.

Notable included items

Notable included items
  • Power cord

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
