Denon DJ

SC LIVE 4

DJ Controller · Released 2022

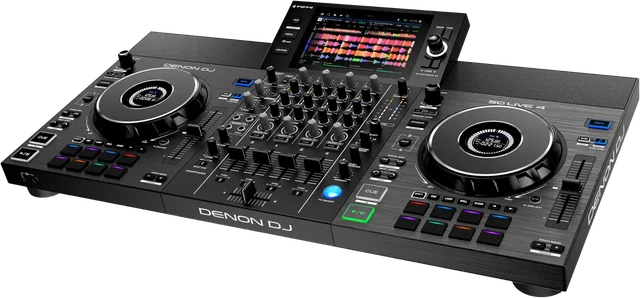

Four-deck Engine DJ standalone system with 7-inch touchscreen, jog displays, built-in speakers, Wi-Fi streaming, internal effects and computer mode.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Club / standard
Jog / platter type
Capacitive-touch
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
No
Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

Serato DJ Pro license included.

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
Engine DJ

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
  • 1 × 6.35 mm TRS
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-B
Dual-computer support
No
DMX output
No
Built-in speakers
Yes
Connection exceptions
Two USB-A media ports and one SD card slot.

Jog wheels & transport

Jog / platter type
Capacitive-touch
Jog / platter diameter
≈ 152 mm
Jog display
Yes Current playhead position; active deck; track BPM.
Jog display technology
LCD
Feel / tension adjustment
No
Tempo fader length
60 mm

Performance & FX

Pads per deck
8
Velocity-sensitive pads
No
Pad backlighting
RGB
Dedicated stems controls
No
Hardware FX
Yes
FX controls
  • Knobs / buttons
  • Screen controls
Extra features
  • Engine Lighting controls

Display & media

Main display
Color
Main display size
178 mm
Touchscreen
Yes
Touchscreen technology
Capacitive
Media / storage
  • USB-A storage
  • SD card
Network / wireless
  • Wi-Fi
  • Bluetooth audio input

Size & power

Width
≈ 719 mm
Depth
≈ 404 mm
Height
≈ 99 mm
Weight
5.8 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
92
Audio note
S/N >92 dB.

Manual & support

User manual ↗ Support & downloads ↗
