Rane

SYSTEM ONE

DJ Controller · Released 2026

Standalone two-deck Engine DJ system with 7.2-inch motorized platters, 7-inch touchscreen, onboard effects, Wi-Fi, Bluetooth, USB/SD media and Serato DJ and djay as computer sources.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Standalone / computer
Controller layout
Battle / scratch
Jog / platter type
Motorized platter
Master output class
Balanced + unbalanced
Standalone playback
Yes
Standalone mixer
No
Serato DJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

Serato DJ Pro hardware unlock; current standalone platform is Engine DJ.

djay

Official support
Yes
Hardware unlock
-

About software support & licenses →

Operation mode
Standalone / computer
Standalone playback
Yes
Built-in audio interface
Yes
Onboard platform
Engine DJ

Decks & mixer

Mixer channels
2
Deck control
2
Physical deck sections
2
Controller layout
Battle / scratch
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
Yes
Hardware crossfader curve
Yes

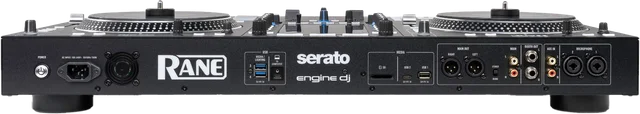

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 1 × USB-C
Dual-computer support
No
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Motorized platter
Jog / platter diameter
≈ 182 mm
Jog display
No
Jog display technology
No display
Torque adjustment
Yes
Tempo fader length
100 mm

Performance & FX

Pads per deck
8
Velocity-sensitive pads
Yes
Pad backlighting
RGB
Dedicated stems controls
Yes
Hardware FX
Yes
FX controls
  • Knobs / buttons
  • Paddles
  • Screen controls

Display & media

Main display
Color
Main display size
≈ 178 mm
Touchscreen
Yes
Touchscreen technology
Capacitive
Media / storage
  • USB-A storage
  • SD card
  • Internal storage
  • USB-C storage
Network / wireless
  • Wi-Fi
  • Bluetooth audio input

Size & power

Width
737 mm
Depth
403 mm
Height
145 mm
Weight
13.33 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1

Manual & support

User manual ↗ Support & downloads ↗
