Pioneer DJ

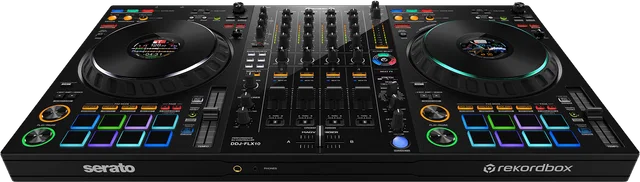

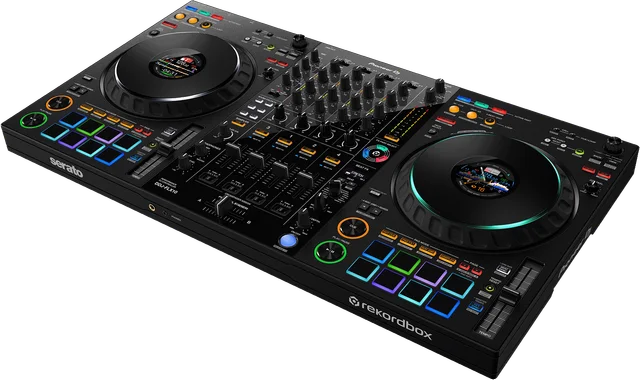

DDJ-FLX10

DJ Controller · Released 2023

Four-channel controller with dedicated stem controls, on-jog displays, hardware effects, dual USB-C computer connections, and a DMX output.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Computer / mobile
Controller layout
Club / standard
Jog / platter type
Mechanical
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
rekordbox Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes (paid license required)
Hardware unlock
-

Official djay Pro support; subscription required.

About software support & licenses →

Operation mode
Computer / mobile
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
  • 1 × 6.35 mm TRS
Line / phono inputs
  • 2 × stereo RCA (line)
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 2 × USB-C
Dual-computer support
Yes
DMX output
Yes
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Mechanical
Jog / platter diameter
206 mm
Jog display
Yes
Jog display technology
LCD
Feel / tension adjustment
Yes
Tempo slider travel
100 mm

Performance & FX

Pads per deck
8
Velocity-sensitive pads
Yes
Dedicated stems controls
Yes
Hardware FX
Yes
FX controls
  • Knobs / buttons
Extra features
  • Mix Point Link
  • MAGVEL FADER 4-sensor system

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
716 mm
Depth
400.3 mm
Height
73.4 mm
Weight
6.7 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
44.1
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
110
Master out THD (USB, %)
0.002
Audio note
USB path; S/N at rated output, A-weighted; THD measured over 20 Hz–20 kHz.

Notable included items

Notable included items
  • AC adapter
  • Power cord
  • USB cable
  • Serato Pitch ’n Time DJ voucher

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
