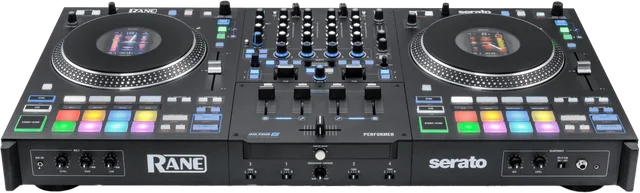

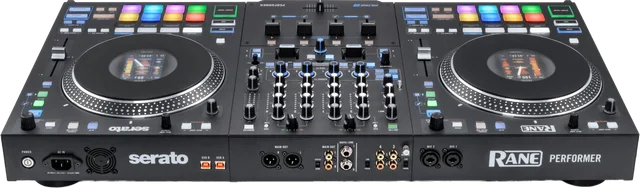

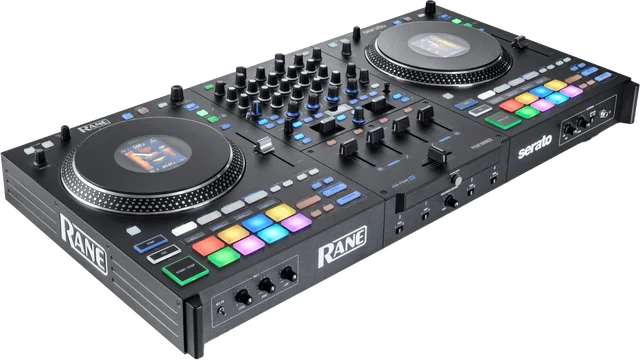

Rane

PERFORMER

DJ Controller · Released 2024

Four-channel Serato DJ Pro controller with 7-inch motorized platters, 3.5-inch color jog displays, internal effects, adjustable channel faders and dual-computer USB.

Overview

Mixer channels
4
Built-in audio interface
Yes
Operation mode
Computer
Controller layout
Club / standard
Jog / platter type
Motorized platter
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
Yes
Serato DJ VirtualDJ

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

Hardware unlocks Serato DJ Pro; Pitch ’n Time voucher included.

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

About software support & licenses →

Operation mode
Computer
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
4
Deck control
4
Physical deck sections
2
Controller layout
Club / standard
Standalone mixer
Yes
DVS
Yes Serato DVS plugin required; decks 3–4 only.
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
Yes
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 2 × XLR / 6.35 mm combo
Line / phono inputs
  • 2 × stereo RCA (line/phono)
Aux input
None
Computer USB
  • 2 × USB-B
Dual-computer support
Yes
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Motorized platter
Jog / platter diameter
≈ 178 mm
Jog display
Yes 3.5-inch full-color HD LCD: waveforms, progress ring, album art, deck data and momentary library/track list.
Jog display technology
LCD
Torque adjustment
Yes

Performance & FX

Pads per deck
8
Pad backlighting
RGB
Dedicated stems controls
Yes
FX controls
  • Knobs / buttons

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
783 mm
Depth
402 mm
Height
110 mm
Weight
12.8 kg
Power source
Internal AC supply

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Frequency response
20 Hz–20 kHz (flat)
Audio note
24-bit PCM, 48 kHz; dynamic range 113 dB (ADC/DAC, A-weighted), not S/N; THD+N 0.004 % main/booth (not THD).

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
