Pioneer DJ

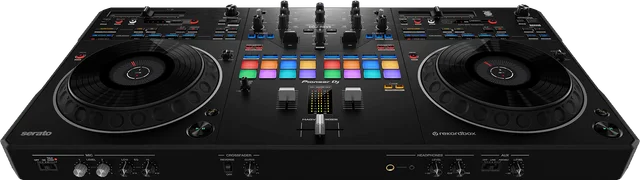

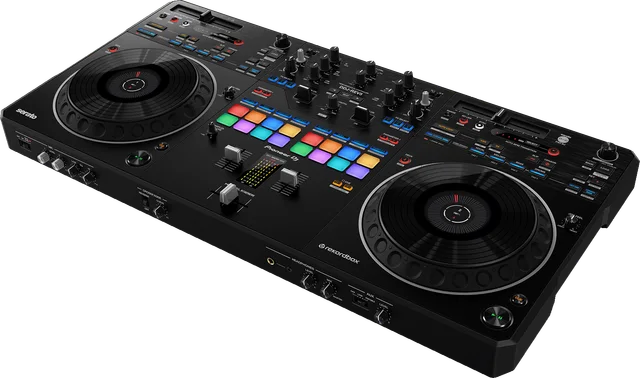

DDJ-REV5

DJ Controller · Released 2023

Two-channel scratch controller with four-deck control, dedicated stem buttons, Auto BPM Transition, Piano Play, and dual USB-C computer connections.

Overview

Mixer channels
2
Built-in audio interface
Yes
Operation mode
Computer / mobile
Controller layout
Battle / scratch
Jog / platter type
Mechanical
Master output class
Balanced + unbalanced
Standalone playback
No
Standalone mixer
No
rekordbox Serato DJ VirtualDJ djay

Specifications

Units:

“-” means no value is recorded. Conversions (≈) are approximate.

Software & operation

Official software support

rekordbox

Official support
Yes
Hardware unlock
Yes

Serato DJ

Official support
Yes
Hardware unlock
Yes (Pro)

VirtualDJ

Official support
Yes (paid license required)
Hardware unlock
-

djay

Official support
Yes
Hardware unlock
-

About software support & licenses →

Operation mode
Computer / mobile
Standalone playback
No
Built-in audio interface
Yes

Decks & mixer

Mixer channels
2
Deck control
4
Physical deck sections
2
Controller layout
Battle / scratch
Standalone mixer
No
DVS
No
Channel gain / trim knobs
Yes
EQ bands per channel
3
Per-channel filter
Yes
User-replaceable crossfader
No
Hardware crossfader curve
Yes

Connections

Master output
  • 2 × XLR (balanced)
  • 2 × RCA (unbalanced)
Master output class
Balanced + unbalanced
Booth output
  • 2 × 6.35 mm TRS (balanced)
Headphones
  • 1 × 6.35 mm stereo
  • 1 × 3.5 mm stereo
Microphone inputs
  • 1 × XLR / 6.35 mm combo
  • 1 × 6.35 mm TRS
Line / phono inputs
None
Aux input
  • 1 × stereo RCA
Computer USB
  • 2 × USB-C
Dual-computer support
Yes
DMX output
No
Built-in speakers
No

Jog wheels & transport

Jog / platter type
Mechanical
Jog / platter diameter
206 mm
Jog display
Yes Playhead position
Jog display technology
LED
Feel / tension adjustment
Yes
Tempo slider travel
100 mm

Performance & FX

Pads per deck
8
Dedicated stems controls
Yes
Hardware FX
No
FX controls
  • Knobs / buttons
  • Paddles
Extra features
  • Auto BPM Transition
  • Piano Play
  • MAGVEL FADER
  • Combo Pad Mode

Display & media

Main display
No display
Touchscreen technology
No touchscreen
Media / storage
None
Network / wireless
None

Size & power

Width
736 mm
Depth
377.2 mm
Height
73.4 mm
Weight
6.2 kg
Power source
AC adapter

Audio specifications

Audio resolution (bit)
24
Sample rate (kHz)
48
Frequency response
20 Hz–20 kHz
Signal-to-noise ratio (dB)
110
Master out THD (USB, %)
0.003
Audio note
USB path; S/N at rated output, A-weighted; THD measured over 20 Hz–20 kHz.

Notable included items

Notable included items
  • AC adapter
  • Power cord
  • USB cable
  • Serato Pitch ’n Time DJ voucher

Manual, firmware & drivers

User manual ↗ Firmware & drivers ↗
